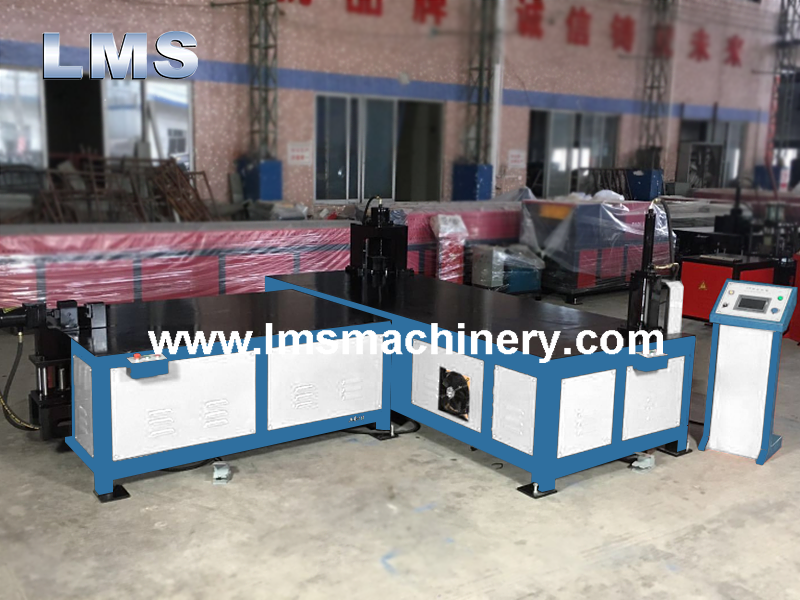

LMS Fire Damper Riveting Platform is mainly composed of corner & outer frame riveting platform, support bar riveting platform, weatherstrip riveting device, hydraulic system and computer operating system. It is one of the important production line equipment for fire damper manufacture.

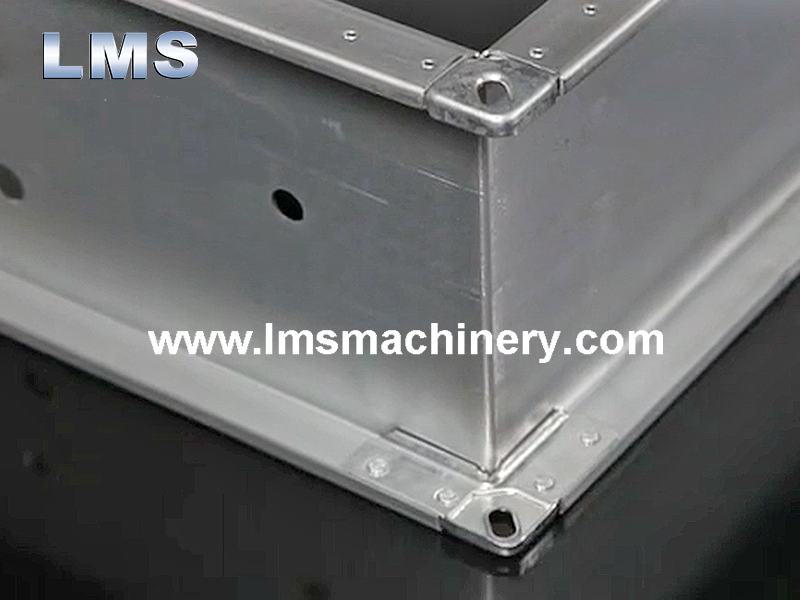

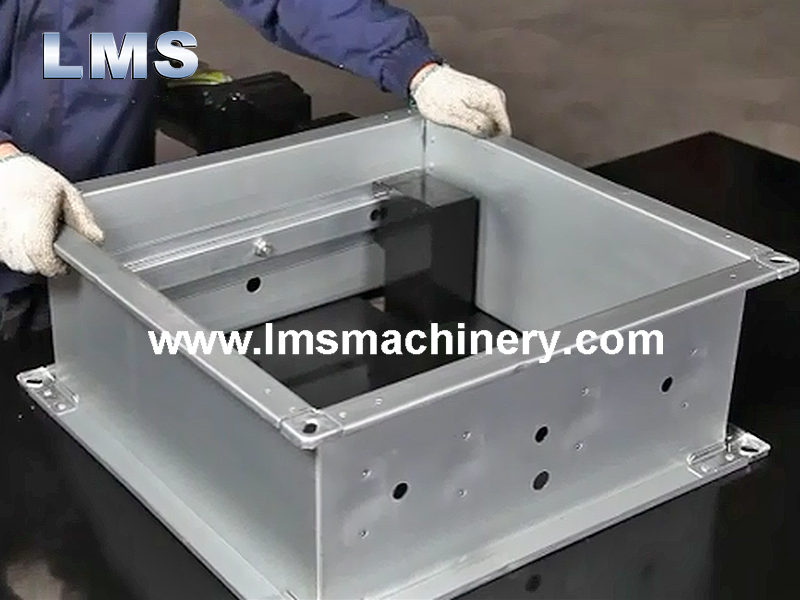

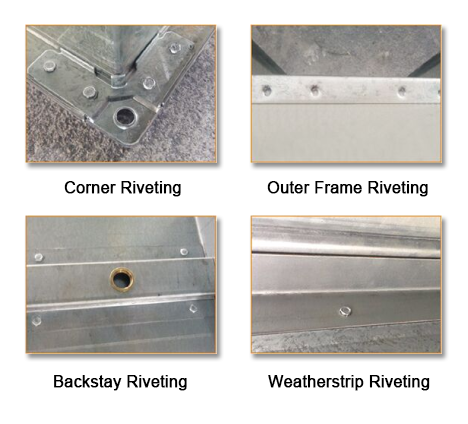

Outer Frame (Positive Pressure Air Supply Outlet) Riveting (4 Riveting) → Corner Riveting (4 Riveting) → Support Bar Riveting (2 Riveting) → Blade Assembly → Weatherstrip Riveting (Single Riveting) → Fire Damper Actuator Assembly → Final Product.
| Item | Quantity |
| Corner & Outer Frame Riveting Platform | 1 Set |
| Support Bar Riveting Platform | 1 Set |

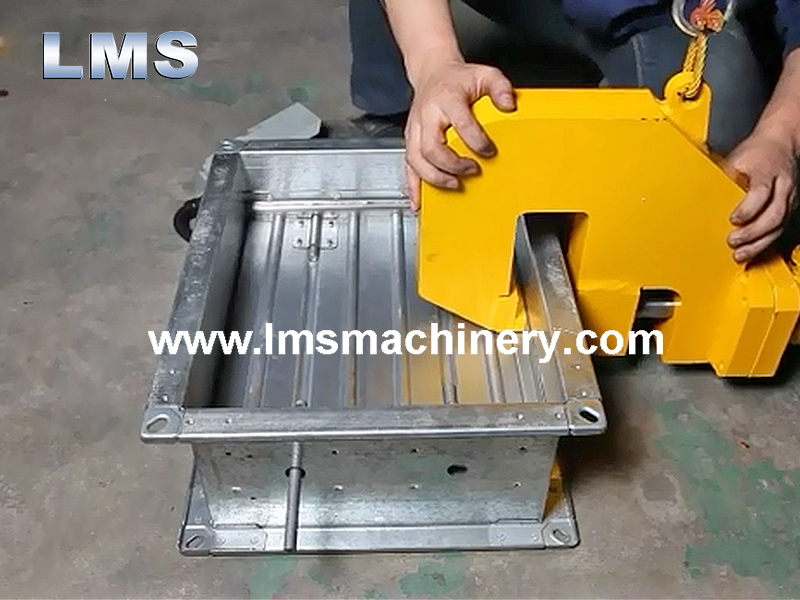

| Weatherstrip Riveting Device | 1 Set |
| Hydraulic System | 4 Sets |
| Computer Operating System | 1 Set |
| Item | Parameters |
| Riveting Fire Damper Thickness | 200 – 320 MM |
| Riveting Fire Damper Dimension | Min. 180 × 180 MM, Max. 3000 × 3000 MM |
| Riveting Material Requirement | 1.2 – 2.0 MM Galvanized Plate |
| Riveting Efficiency | 4 Seconds / Time, Excluding Assembly |
| External Dimensions of Platform | 3600 × 3600 × 850 MM (L × W × H) |
| Electrical Control System | PLC Foot Control |
| Power Supply | 380 V, 50 HZ, 3 Phase |
| Motor Power | 4 KW (Corner Riveting) + 4 KW (Support Bar Riveting) + 4 KW (Outer Frame Riveting) + 3 KW (Weatherstrip Riveting), 15 KW in Total.
|
