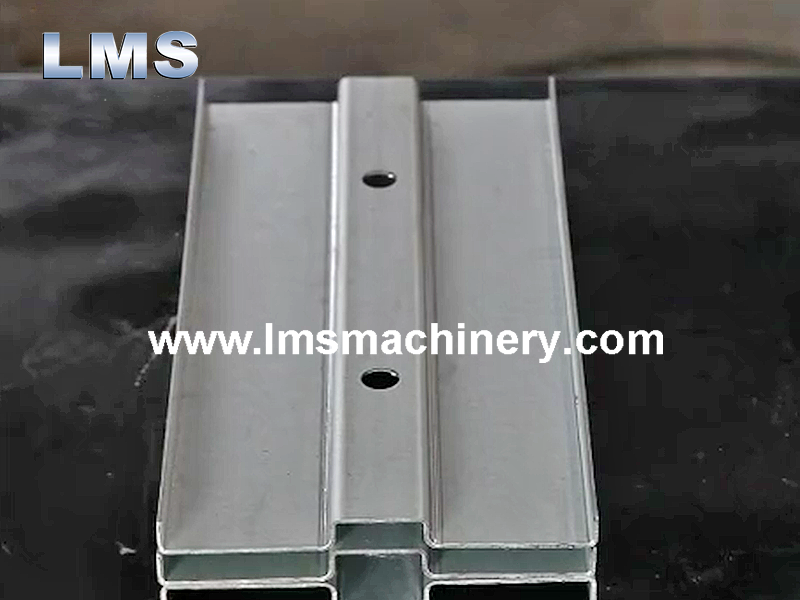

LMS Fire Damper Baffle Forming Machine is mainly composed of manual decoiler, roll forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper baffle. It is one of the important production line equipment for fire damper manufacture, with the advantage of high efficiency and precision, and stable performance. The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.
Decoiling → Roll Forming → Straightening, Reshaping → Punching → Cutting To Length → Manual Discharging.
| Item | Quantity |
| 3T Manual Decoiler | 1 Unit |
| Roll Forming Machine | 1 Unit |

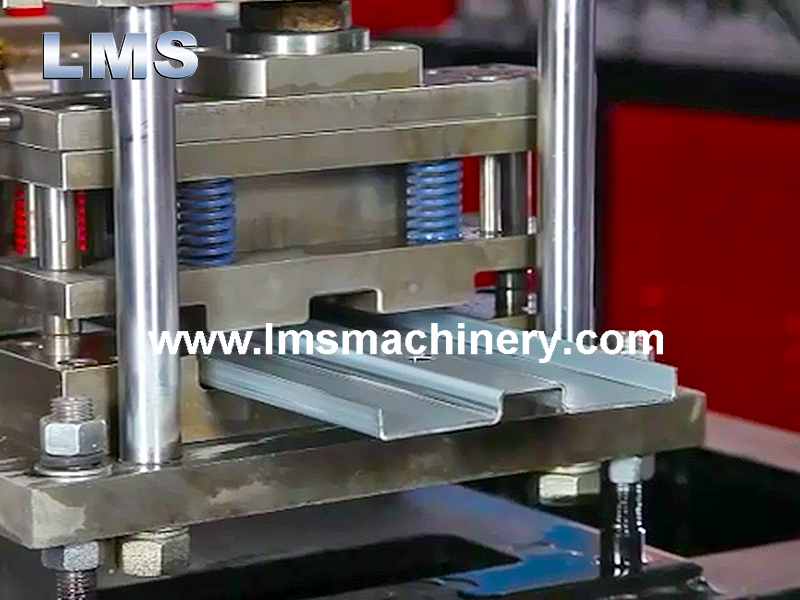

| Cutting, Punching Tools | Each 1 Set |
| Electrical Control System | 1 Set |
| Hydraulic Control System | 1 Set |

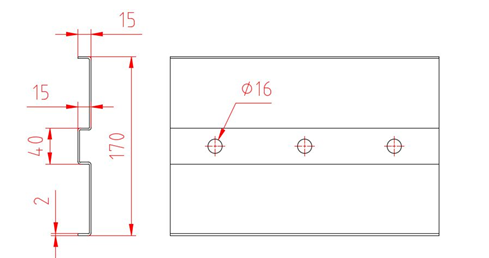

Fire Damper Baffle Forming Line Main Technical Parameters:
| Item | Parameters |
| Material | Galvanized Plate |
| Material Thickness | 1.5 – 2.0 MM |
| Width of Coil | 250 (95) MM |
| Weight of Coil | ≤ 2000 KGS |
| Forming Height | 15 MM |
| Motor Power | 7.5 KW / 4 KW |
| Forming Speed | 1 – 15 M, Adjustable |
| Plate Length Error | ± 0.5 MM / 1000 MM |
| Punching Hole Distance Error | ± 0.5 MM / 1000 MM |
| Glancing Flatness | ≤ 1 MM / 1000 MM |
| Control Mode | PLC Control |
| Main Power Supply | 380 V, 50 HZ, 3 Phase |
| Hydraulic System Pressure | 25 MPa, Working Pressure: 8 – 12 MPa |
| External Dimensions of Line | Approx. 5000 MM × 700 MM × 1200 MM (L × W × H) |
